持续集成（Gitops）

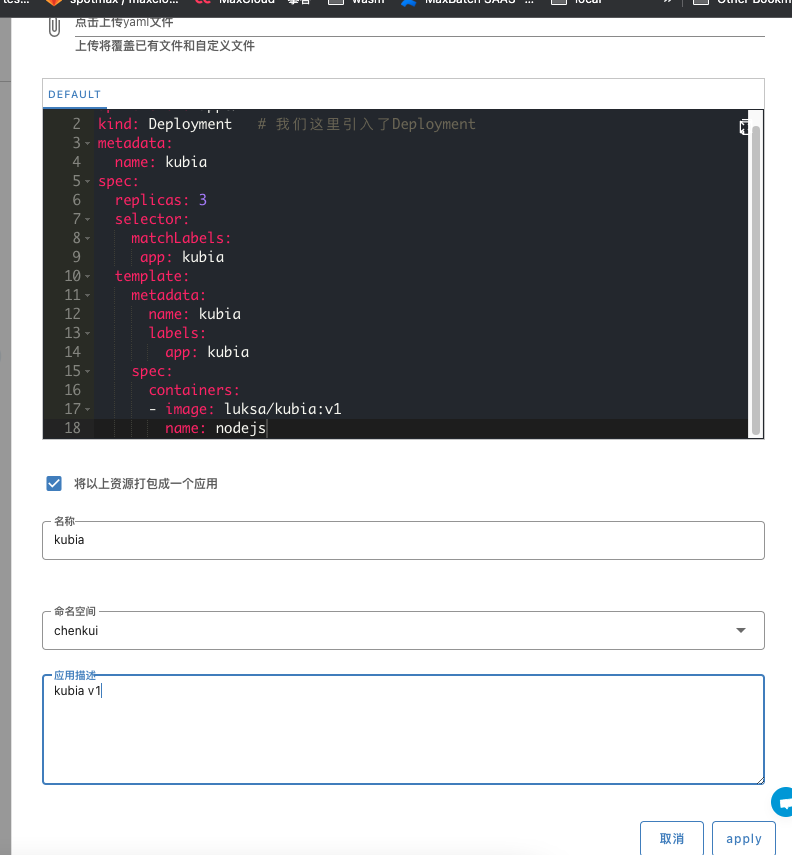

进入”应用管理“，点击 “Apply Yaml” 勾选 “将以上资源打包成一个应用”，
apiVersion: apps/v1
kind: Deployment
metadata:
name: kubia
namespace: << your name space >> #用分配给您的Namespace替换
spec:
replicas: 3
selector:
matchLabels:
app: kubia
template:
metadata:
name: kubia
labels:
app: kubia
spec:
containers:
- image: luksa/kubia:v1
name: nodejs

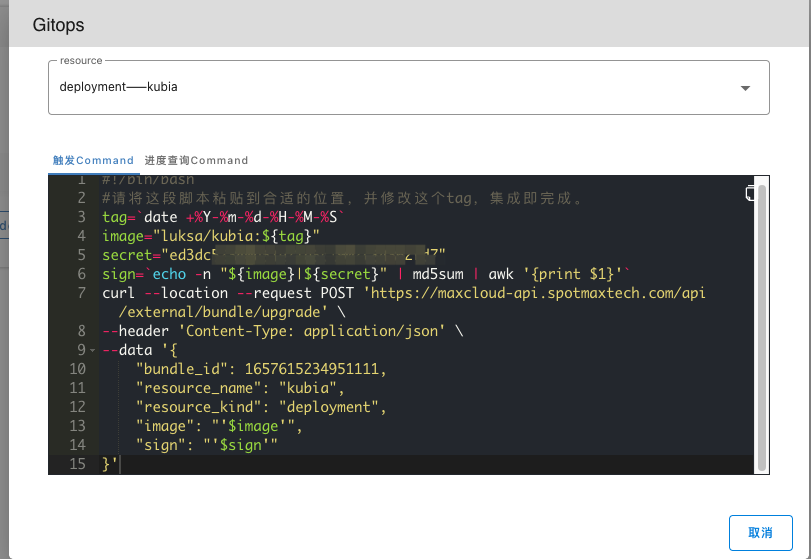

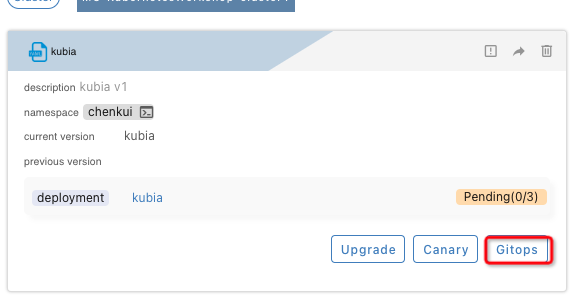

在Bundle上点击 “Gitops” 按钮，复制Gitops代码
#!/bin/bash
#请将这段脚本粘贴到合适的位置，并修改这个tag，集成即完成。
tag=`date +%Y-%m-%d-%H-%M-%S`
image="luksa/kubia:${tag}"
secret="ed3dc52340a51e71a3xxxxxxx2fd7"
sign=`echo -n "${image}|${secret}" | md5sum | awk '{print $1}'`
curl --location --request POST 'https://maxcloud-api.spotmaxtech.com/api/external/bundle/upgrade' \
--header 'Content-Type: application/json' \
--data '{
"bundle_id": 1657615234951111,
"resource_name": "kubia",
"resource_kind": "deployment",
"image": "'$image'",
"sign": "'$sign'"
}'
将下面的代码片段保存为v2.sh
#!/bin/bash
#请将这段脚本粘贴到合适的位置，并修改这个tag，集成即完成。
tag=`date +%Y-%m-%d-%H-%M-%S`
image="luksa/kubia:v2"
secret="ed3dc52340a51e71a3xxxxxxx2fd7"
sign=`echo -n "${image}|${secret}" | md5sum | awk '{print $1}'`
curl --location --request POST 'https://maxcloud-api.spotmaxtech.com/api/external/bundle/upgrade' \
--header 'Content-Type: application/json' \
--data '{
"bundle_id": 1657615234951111,
"resource_name": "kubia",
"resource_kind": "deployment",
"image": "'$image'",
"sign": "'$sign'"
}'
chmod +x v2.sh
./v2.sh
# 结果如下
{"status":200,"request_id":"2c1a2576ccbd4a6c996b2cad8d9d9a9d","message":"success","data":"create success","time":1657616634}

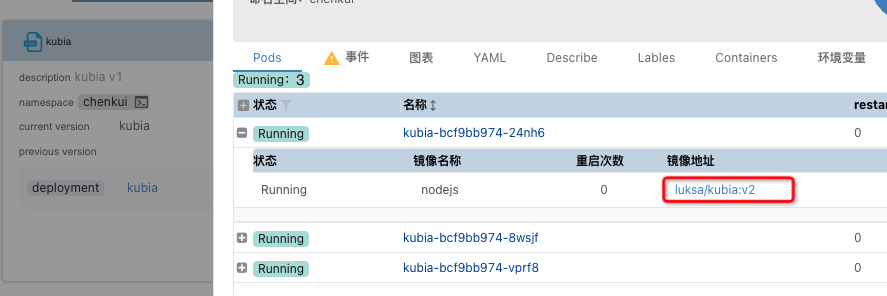

点击 Bundle -> Deployment 验证已经升级到V2版本
这个脚本也可以使用jenkins等CI/CD工具， 集成部署过程

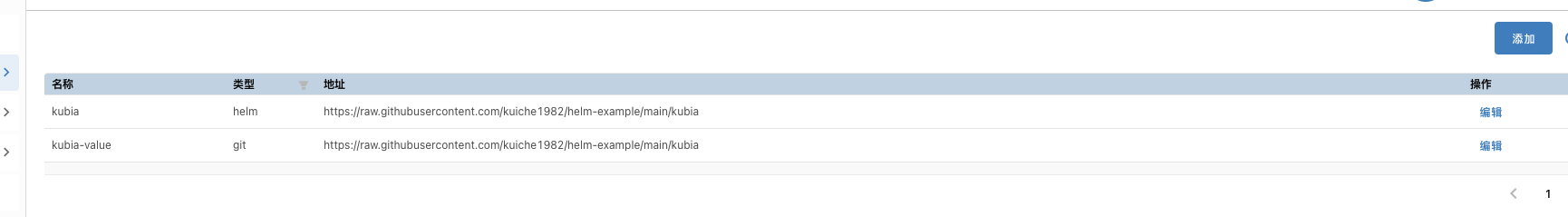

创建Helm仓库， 这里我们使用https://raw.githubusercontent.com/kuiche1982/helm-example/main/kubia （已经为大家添加到了实验环境里）
部署Helm
$ helm repo add kubia https://raw.githubusercontent.com/kuiche1982/helm-example/main/kubia
$ helm list
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
kubiahelm chenkui 1 2022-07-12 11:35:10.226574729 +0000 UTC deployed kubia-0.1.0 1.16.0

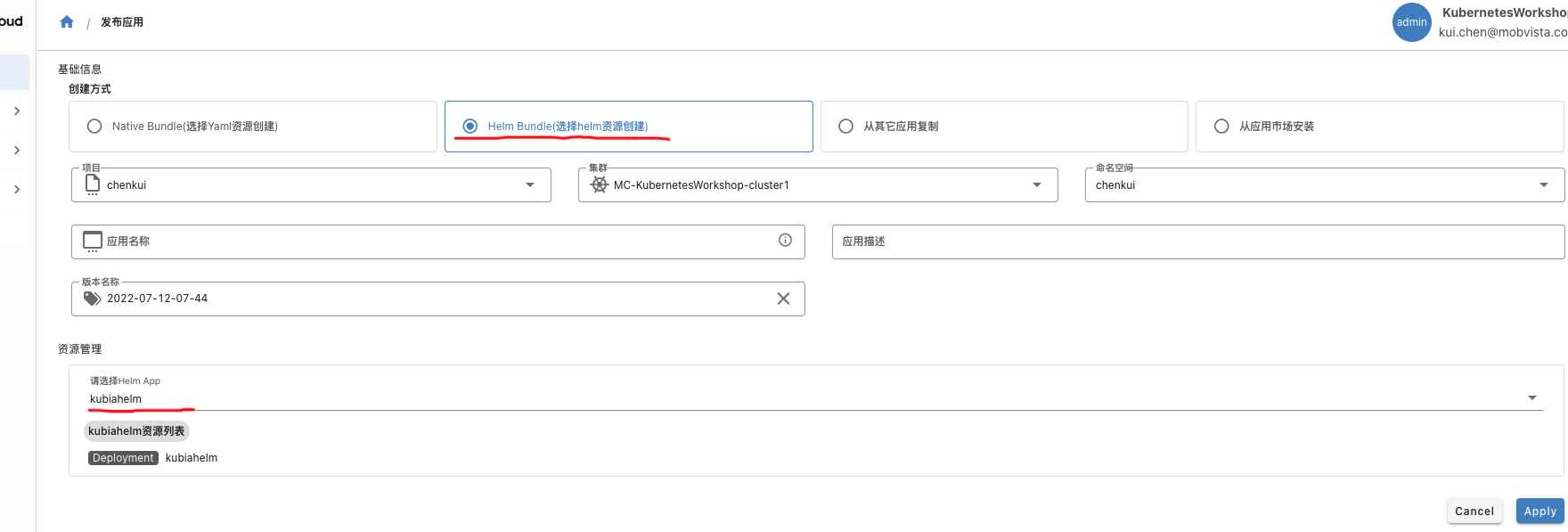

创建Helm Bundle

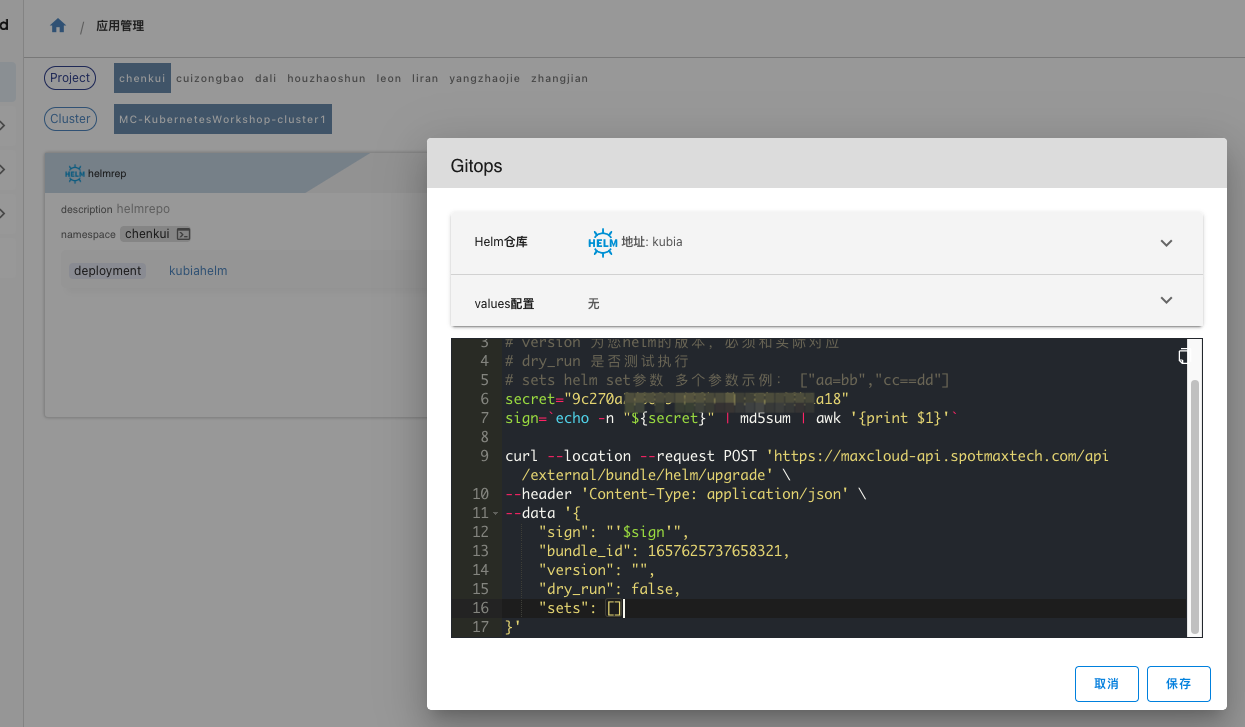

配置Gitops
#!/bin/bash
# version 为您helm的版本，必须和实际对应
# dry_run 是否测试执行
# sets helm set参数 多个参数示例： ["aa=bb","cc==dd"]
secret="9c270a2d6629xxxxxxxxx133b1a18"
sign=`echo -n "${secret}" | md5sum | awk '{print $1}'`
curl --location --request POST 'https://maxcloud-api.spotmaxtech.com/api/external/bundle/helm/upgrade' \
--header 'Content-Type: application/json' \
--data '{
"sign": "'$sign'",
"bundle_id": 1657625737658321,
"version": "0.2.0", # 这里改为0.2.0
"dry_run": false,
"sets": []
}'
# chmod +x v2.sh
# ./v2.sh
# {"status":200,"request_id":"c72b7b1805ed4fa4a26d2f7b01f19cd4","message":"success","data":"apply success","time":1657626107}
验证Helm 实例更新到了V2
$ helm list
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
kubiahelm chenkui 2 2022-07-12 19:41:46.806868607 +0800 +0800 deployed kubia-0.2.0 1.16.0
Last modified 6mo ago
